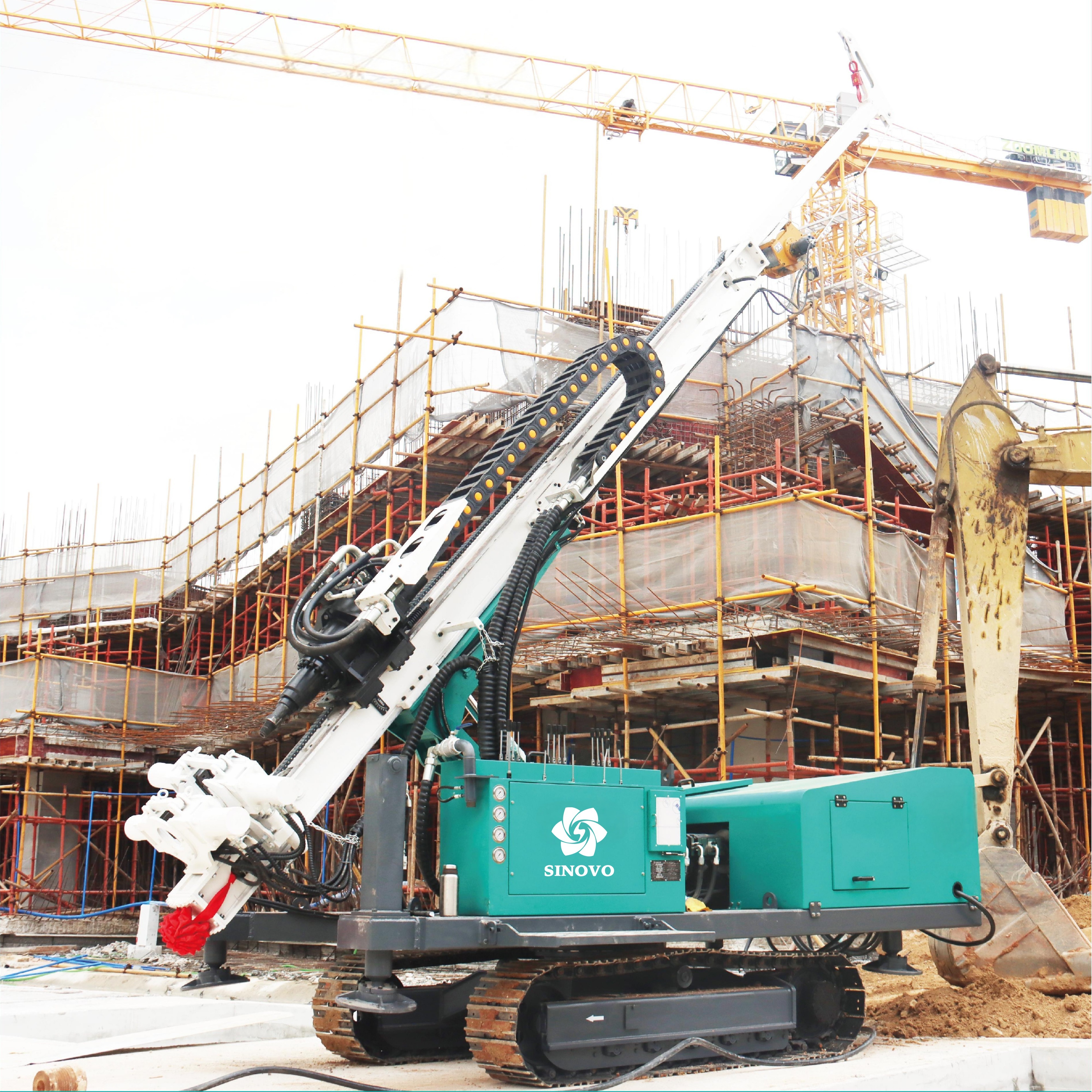

| Làm nổi bật: | SK800 hydraulic pile breaker,multi-functional anchor drilling rig,hydraulic pile breaker with warranty |
||
|---|---|---|---|
| Hole Diameter | 90-500 mm |
| Hole Depth | 200 m |
| Rod Diameter | Ф76/89/102/114 mm |
| Hammer | 3''-20'' |
| Pipe Casing | 101-219 mm |
| High-pressure Rotary Spray | single/double tube |
| Single Propulsion Length | 3600 mm |
| Horizontal Drilling Height | 2750 mm |
| Gripper Diameter | 200 mm |
| Advancing Compensation | 1260 mm |
| Maximum Lifting Force | 6 T |
| Maximum Propulsion | 3.3 T |
| Maximum Lifting Speed | 29 m/min |
| Maximum Propulsion Speed | 53 m/min |
| Rotary Motor Left And Right | 180° |
| Electric Motor Power | 55+18.5 kw |
| Input Voltage | 380 v |
| Ground Clearance | 335 mm |
| Weight | 7.9 T |
| Transport dimensions (LxWxH) | 6.3x2.2x2.6 m |
| Power Head Output Speed | 0-170 r/min |
| Power Head Output Torque | 9000 N.m |
